EHT Skid Packages

Vertically Integrated Package

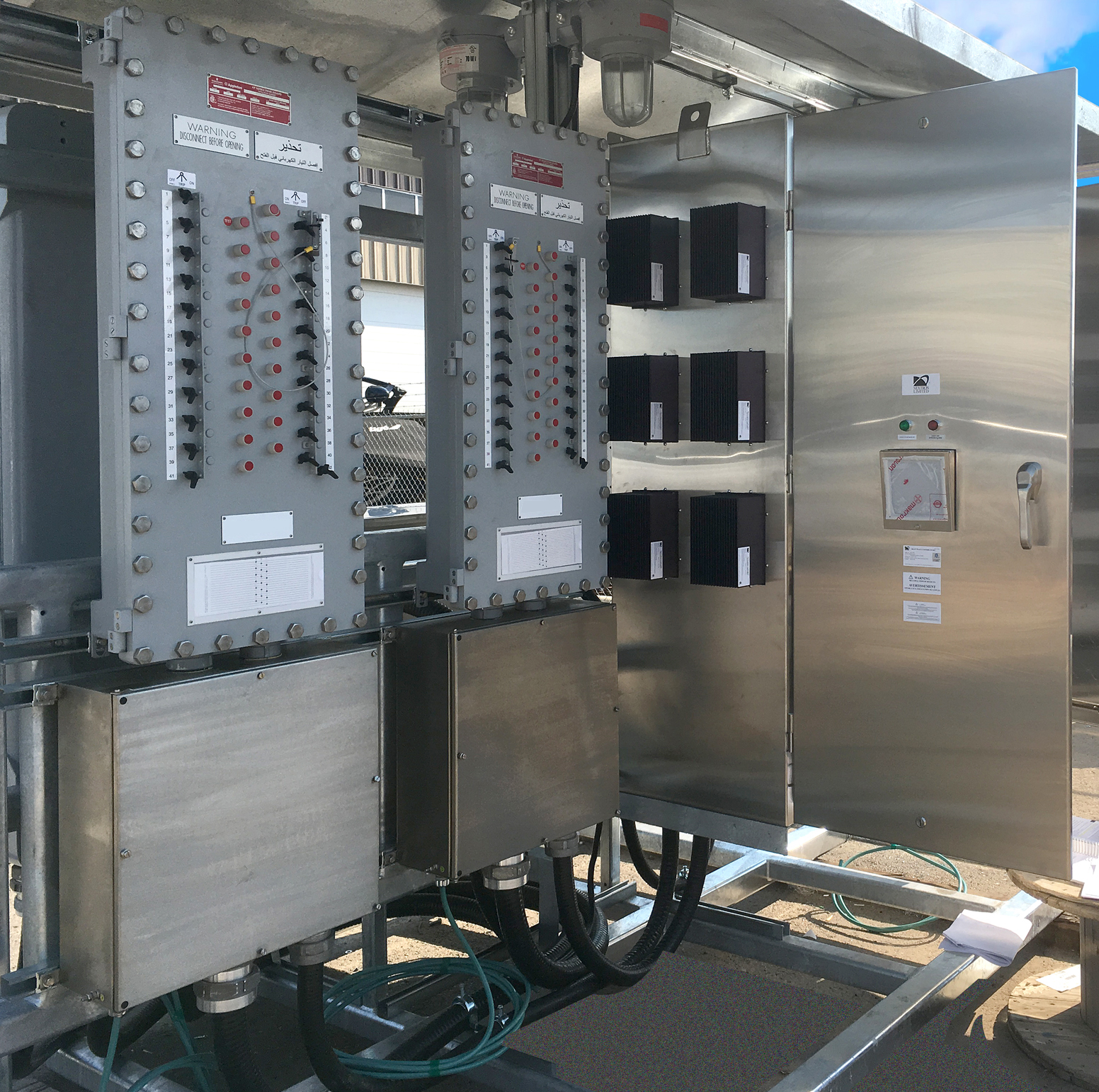

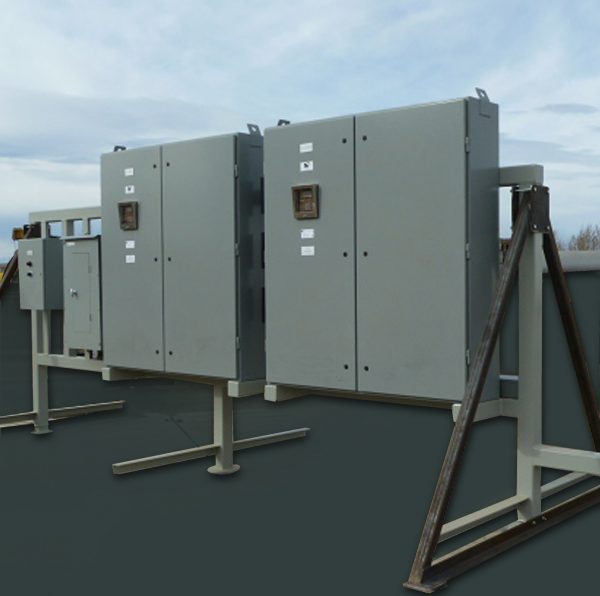

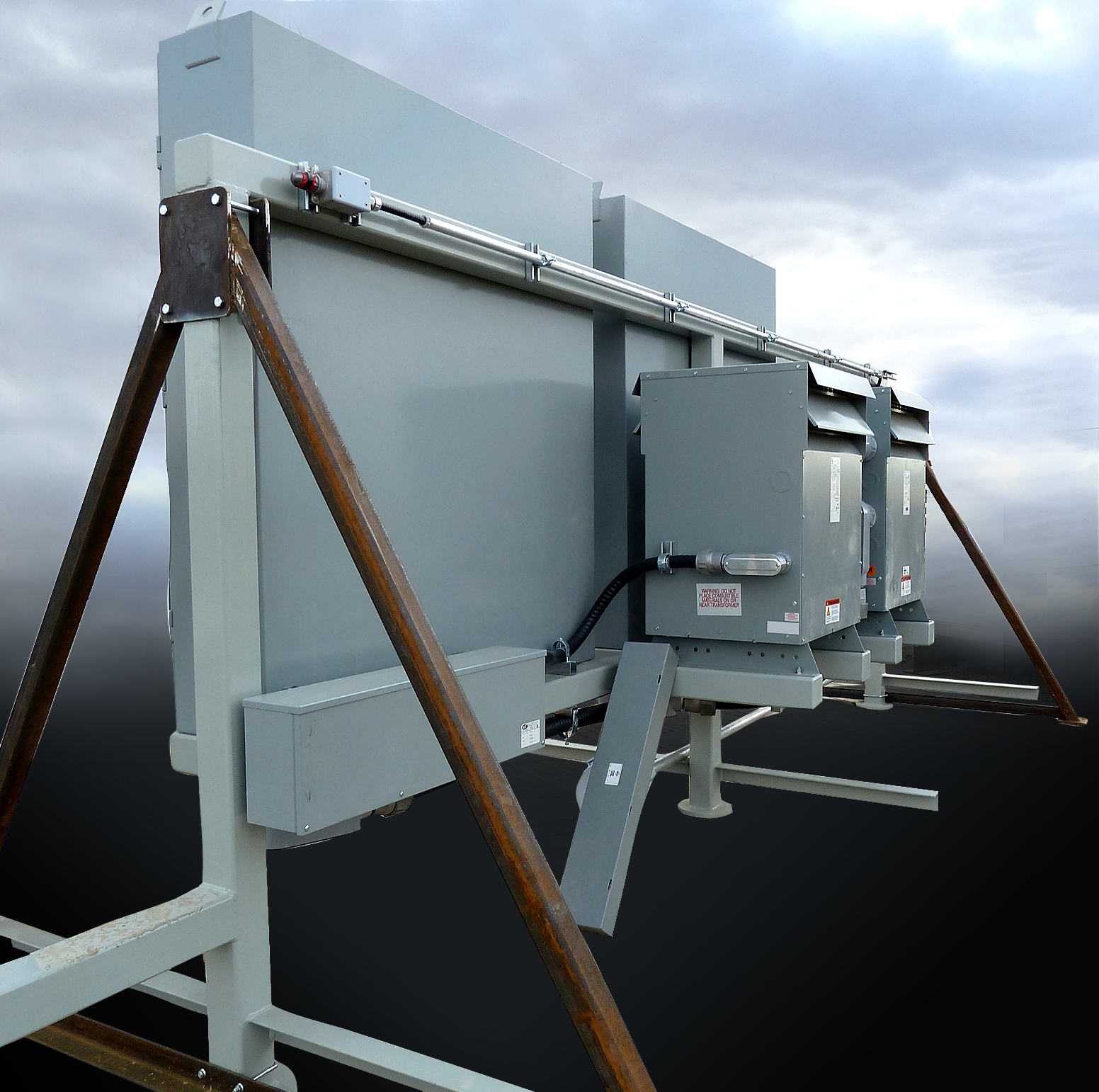

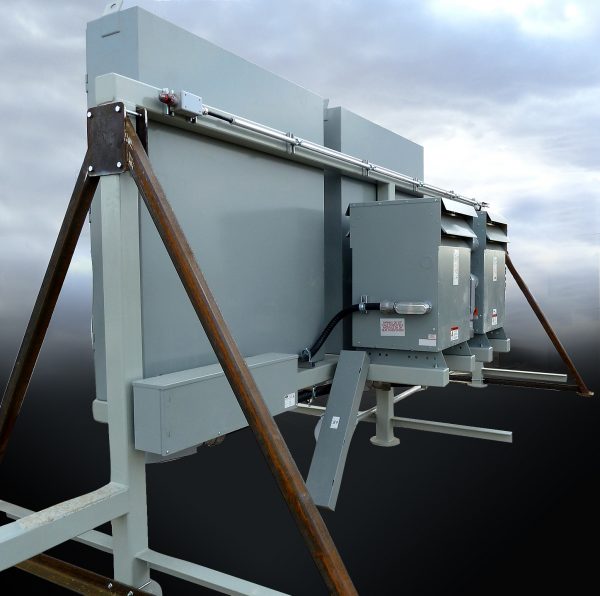

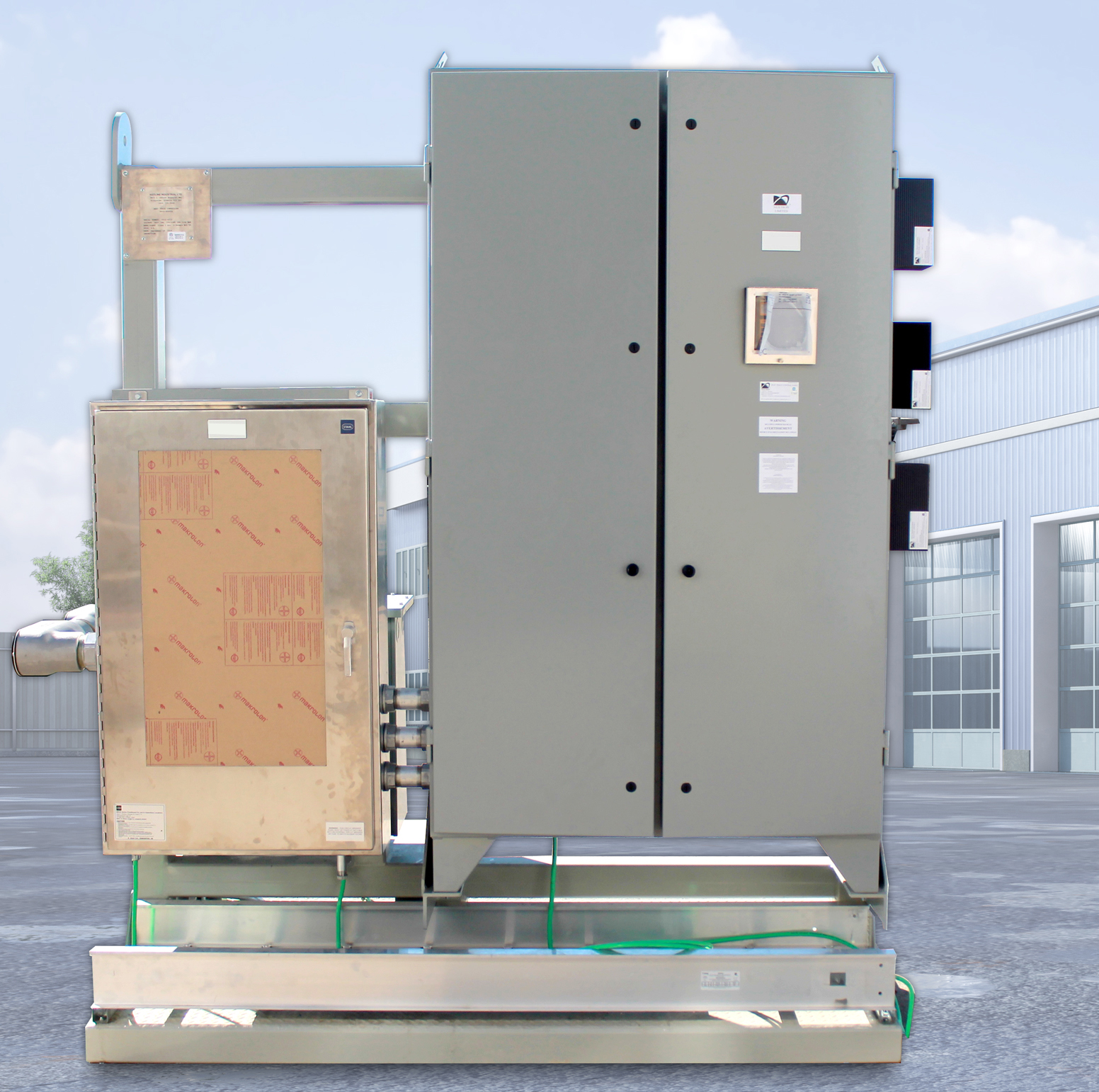

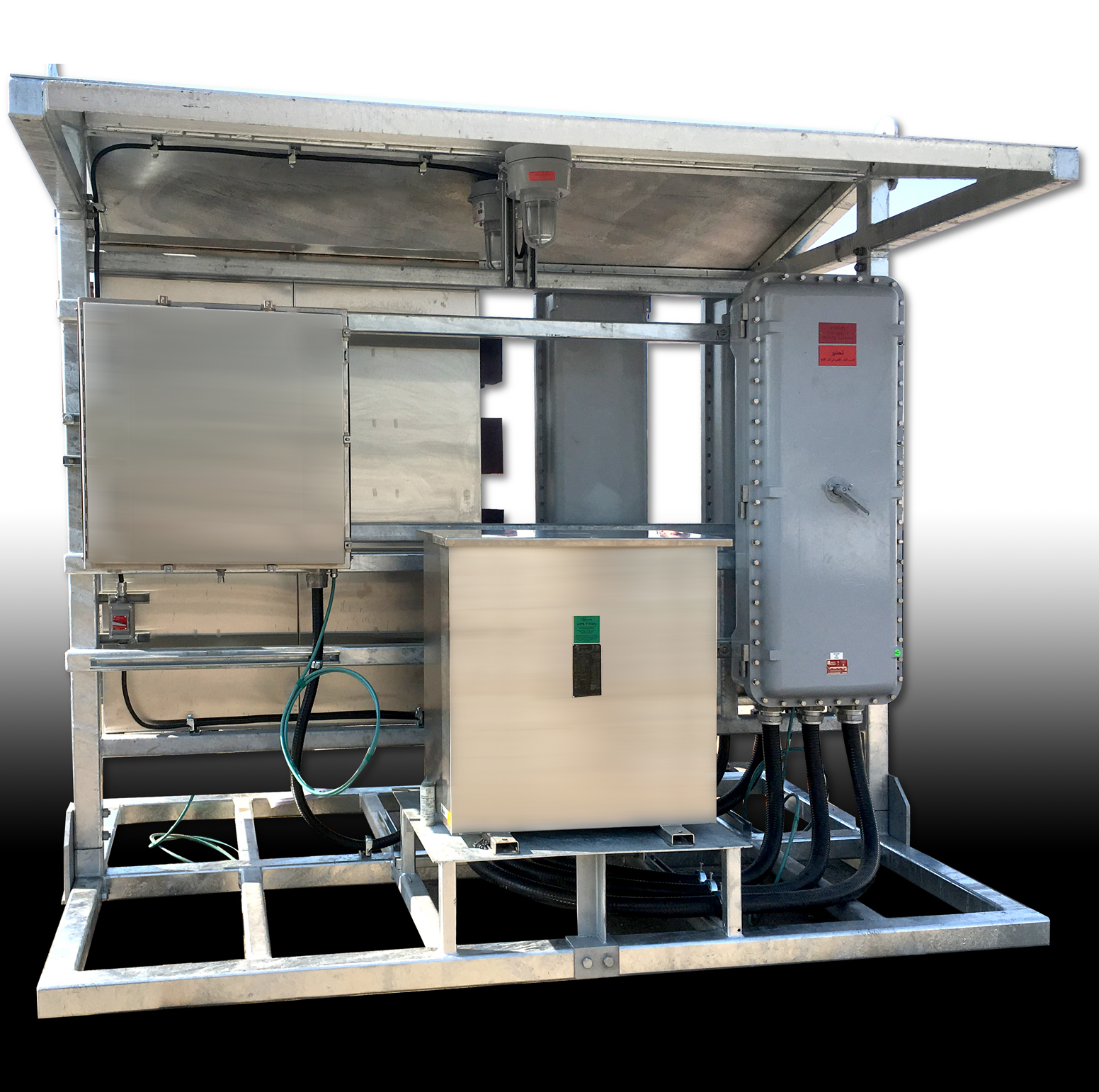

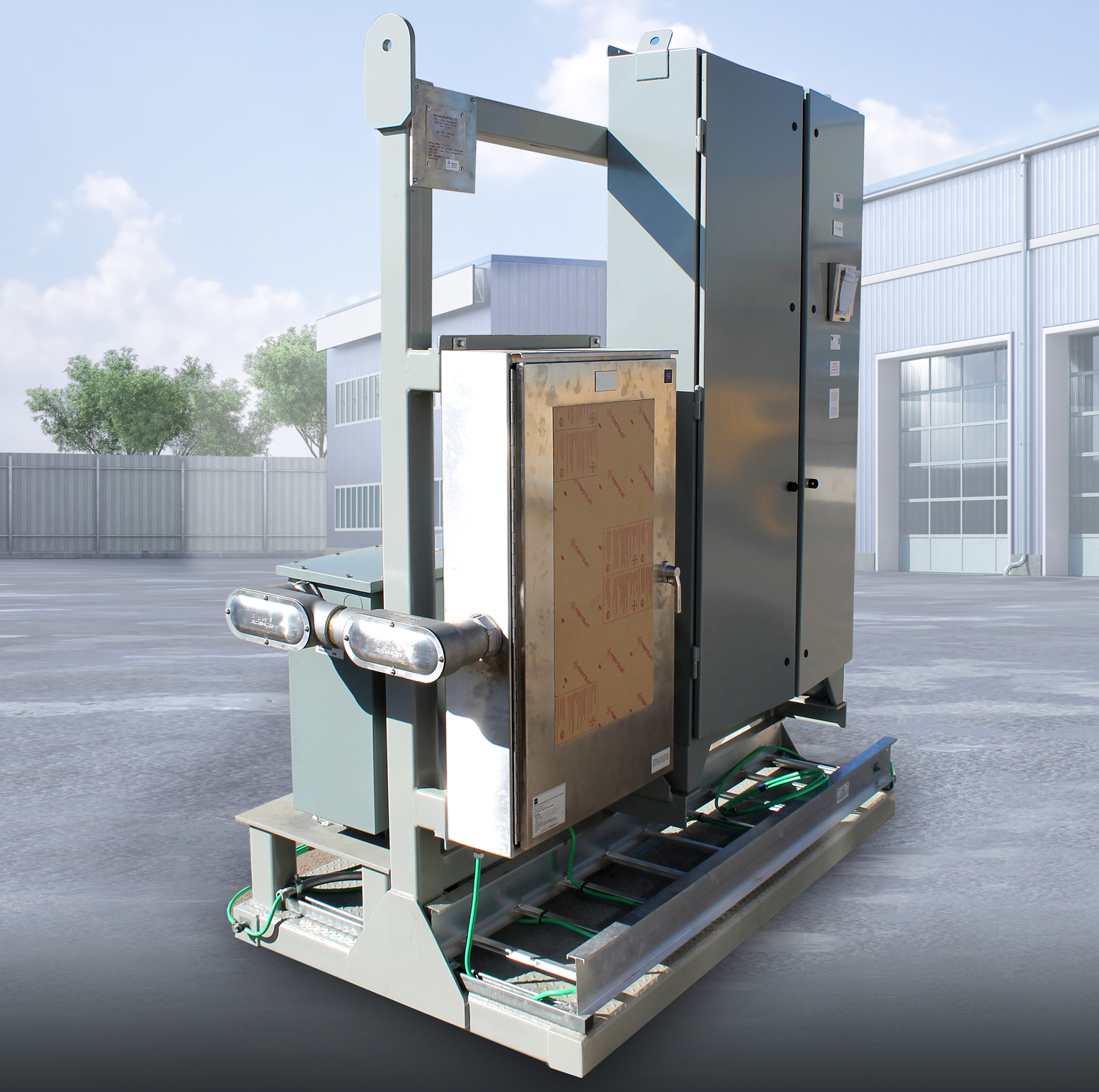

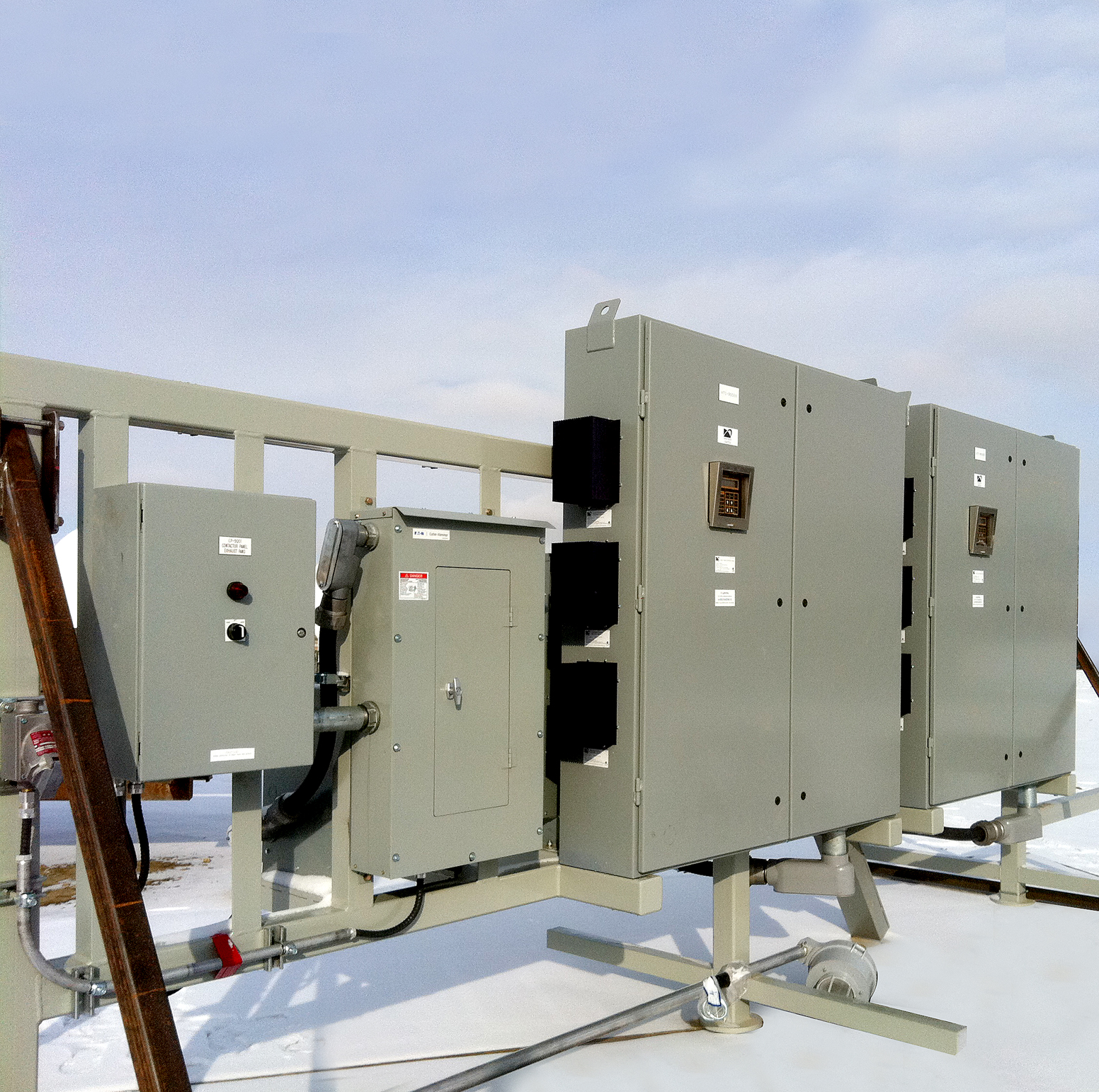

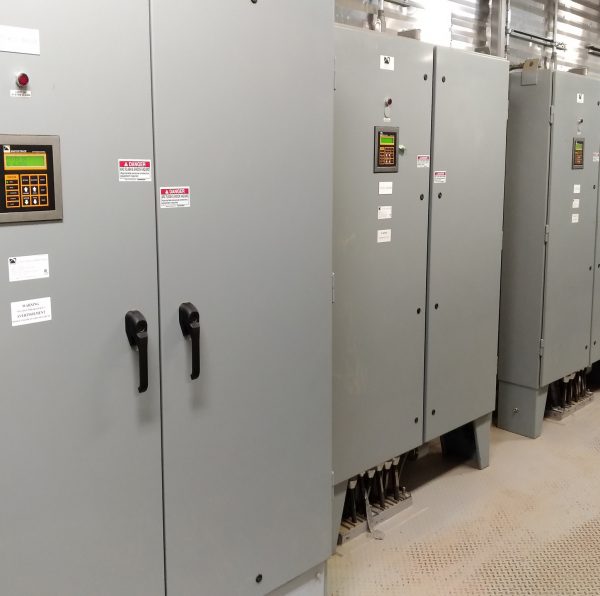

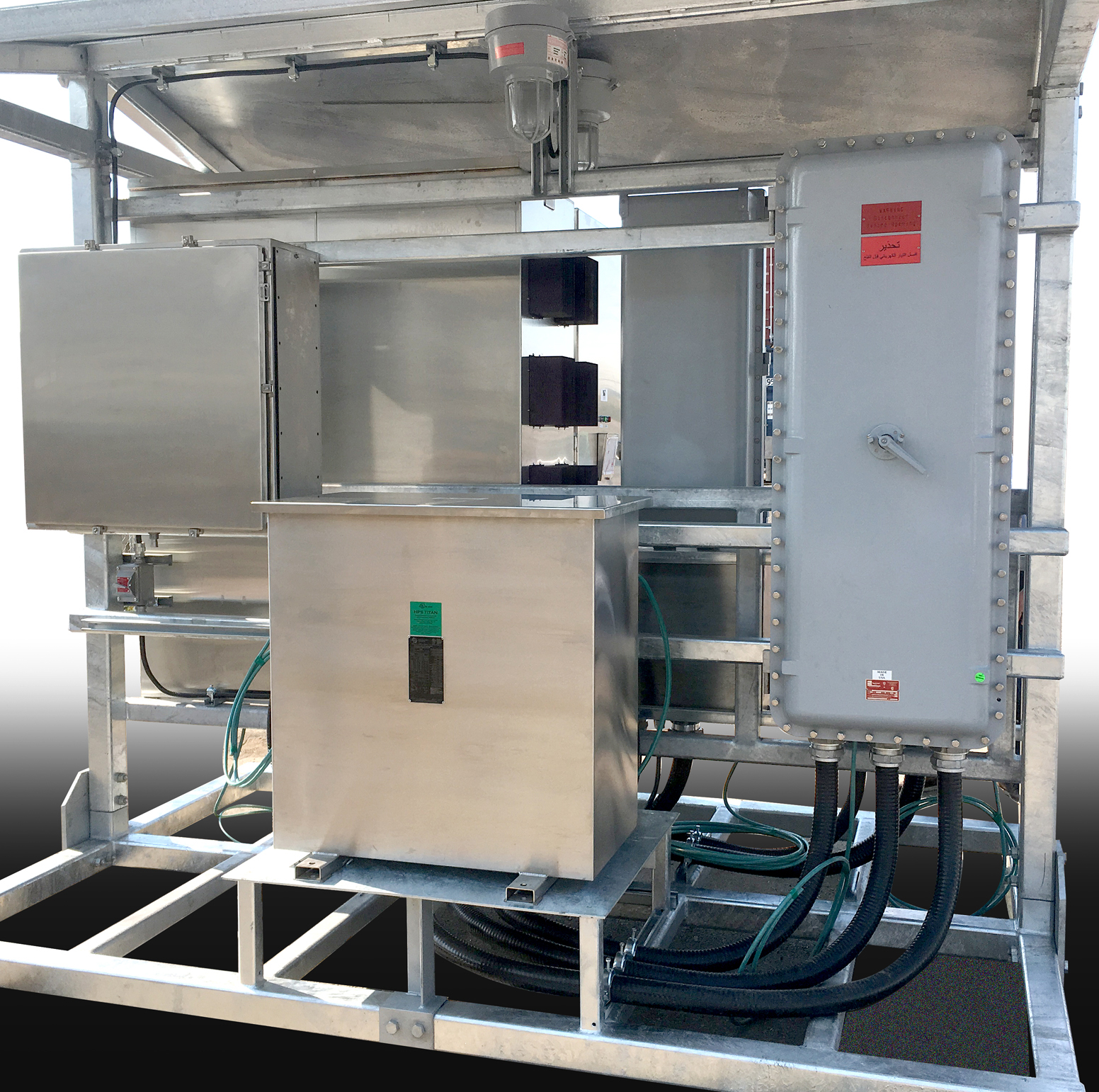

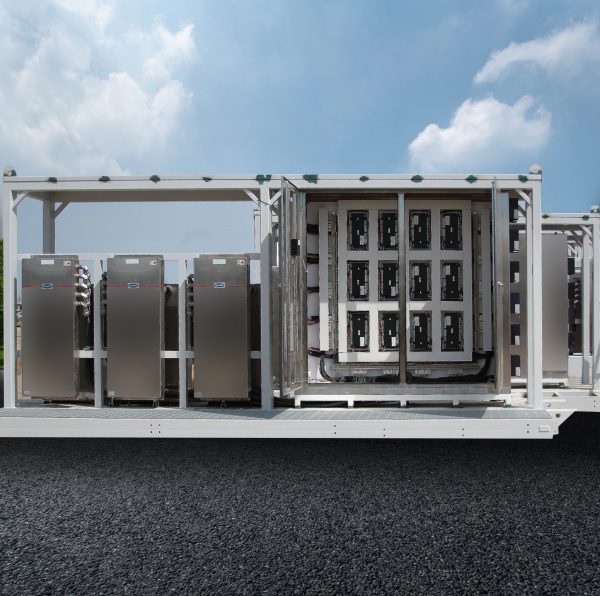

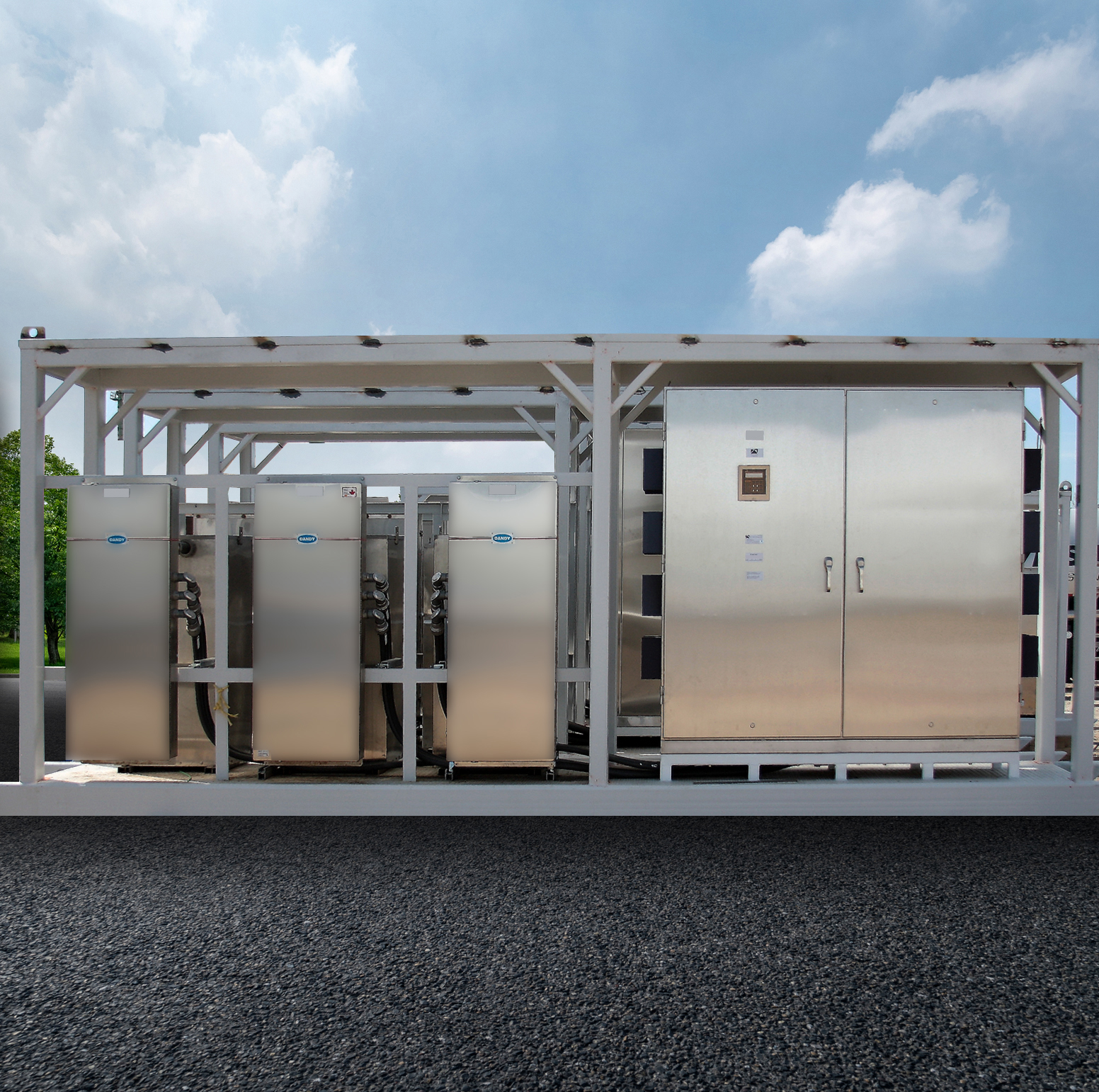

To further assist our clients with their electrical heat tracing control applications Nextron offers vertically integrated EHT skid packages. These low voltage (600V) industrial electrical heat tracing switch racks typically comprise of a transformer, distribution panel, and an EHT control panel all mounted on a structural steel frame and electrically interconnected. Other components (splitters, contractor panels, and lighting) can also be incorporated. For our customers, this approach saves time in design, engineering, procurement, project management, and field installation. EHT control skids offer a high degree of customization and flexibility to suit your applications.

See How it Works

Place an Order
Contact US for More Info

Categories: ,

Click Here for Features and Advantages

  • Highly customizable – use standard configurations or choose every detail to suit your application
  • Designed for application environment – EHT skids can be installed in general purpose or hazardous areas
  • Mounted and prewired components – shipped to site complete, without requirements for additional assembly
  • NRTL certification – skid assembly is marked for use in environments it was designed for, no additional field inspection required
  • Plug and play field installation – only wire the feeder to the transformer and power to EHT junction boxes
  • Full MasterTrace functionality – skid packages utilize the MasterTrace product line and its range of EHT control capabilities

How Nextron Can Build Your Skid Package

EHT Skid Packages Vertically Integrated Package

Control Room/Field

Remote configuration and monitoring with Nextron MC100 supervisory software.

Modbus Protocol

Allows easy interfacing with our MC100 software or anyone’s PLC or DCS. Ethernet, BACnet and Fiber Optic communication protocols are also available.

Alarm Light/Audible Alarm

Fully configurable and flexible alarm signal to meet the demands of customers’ individual design. – Alarm on, alarm off – Flash during alarm then on – Flash during alarm then off

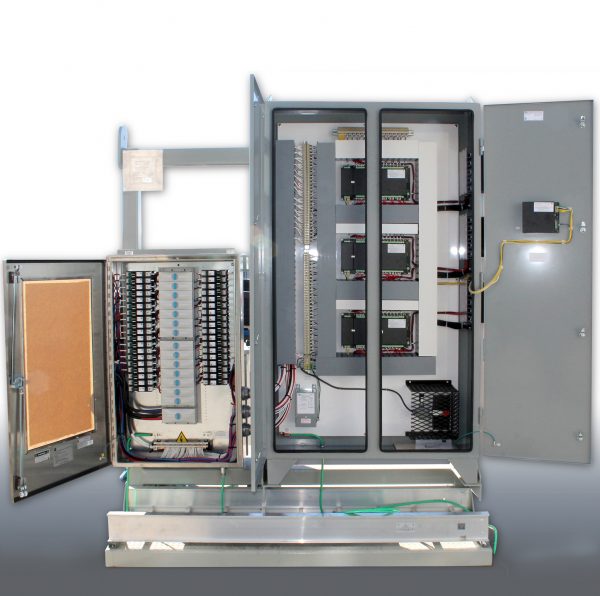

Custom Engineered Control Panels

Designed to your specific requirements incorporate the unequaled quality and reliability of Nextron’s MasterTrace control modules.

Panel Board

All power distribution designs are compatible with Nextron control and monitoring systems for electrical heat trace. Sealed breakers can be installed in IP 65 or Nema 4/4X cabinets for hazardous/classified installations. Alternatively, standard open frame main/branch breakers may be installed in IP 65 or Nema 4/4X cabinets with purge for hazardous/classified areas.

Transformers

Transformers from 15 KVA to 115KVA. Heavy duty enclosed Type 4 standard (also meets Type 12) [optional Type 4X]

Heat Trace Cable

Nextron’s controllers are compatible with every type of EHT available on the market today.

RTD Temperature Sensor

3 wire RTD, 22awg, PT100 ohm, IEC571, Class A. Temperature Rating -50C to 200C. Standard lead length – 7 feet.
